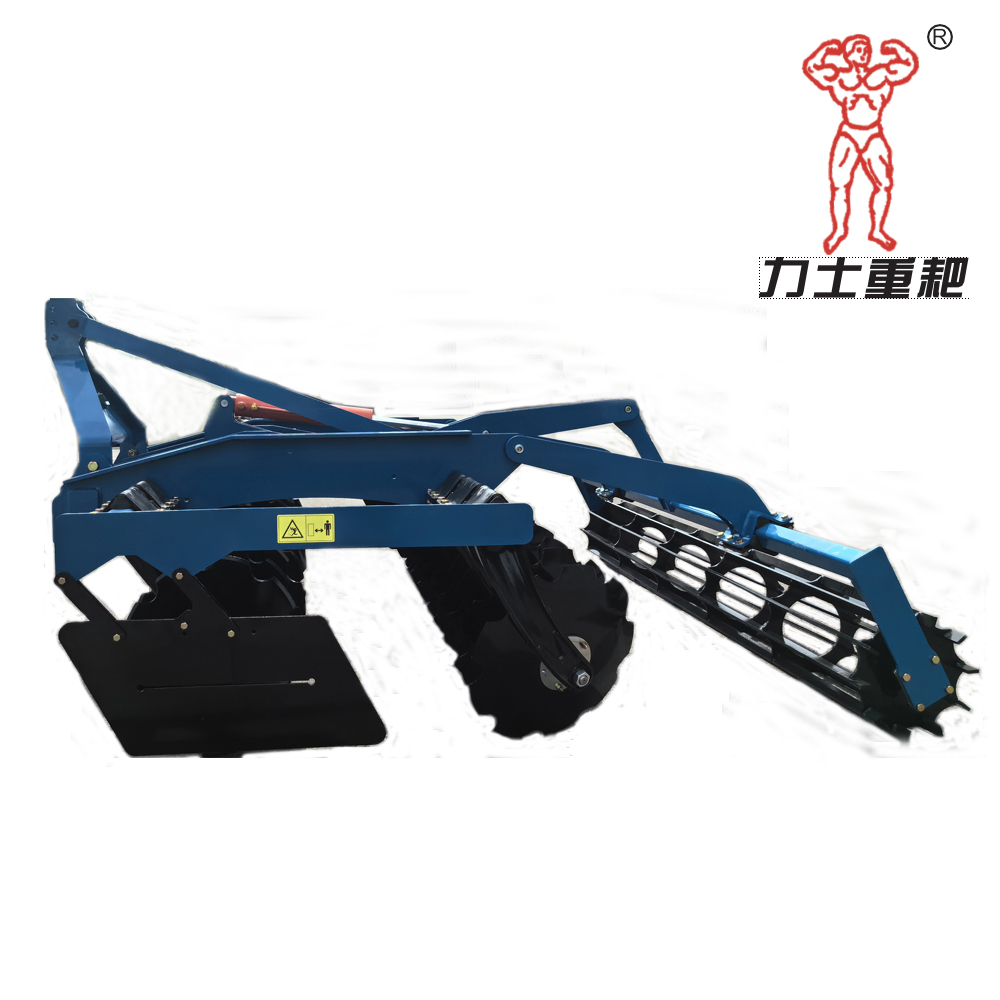

1BZM2.5-3.5 suspension High speed tiller

1BZM Series hydraulic suspension stubble Speed Tiller Harrow has a strong square tube steel frame.

The- disc gangs are mounted with clamps that can be loosened to allow for lateral movement of the disc gang to suit the farmer's needs on spacing and alignment. Disc bearings are high quality, greaseless and maintenance free. Rubber stock placed inside the disc arm clamps allow for a cushioned movement of the disc arm to prevent damage to the disc or disc arm during operation. Two sets of crumble rollers are fitted and covering discs attached to prevent furrows. The roller frame is attached to the main frame via a specially formulated high viscosity thermoplastic nylon bushing for long life and wear resistance. It can efficiently cut, size and incorporate high levels of crop residue increasing the carbon content in your soil. Soil erosion from wind and water is drastically reduced by the Supa Till's excellent incorporation ability.

1BZM-2.5m

Working Width 2m Working Depth 15-18cm Discs No 16pcs Disc diameter 660mm or 610mm Overall weight 1650kg matched power is 100-120hp

1BZM-3m

Working Width 3m Working Depth 15-18cm Discs No 20 pcs Disc diameter 660mm or 610mm Overall weight 1850kg matched power is 120-150hp

1BZM-3.5m

Working Width 3.5m Working Depth 15-18cm Discs No 24 pcs Disc diameter 660mm or 610mm Overall weight 2050kg matched power is 150-180hp

We have Disc Harrow, joint tillage machine ,Speed Tiller, Disc Plow, Disc Blade ,agriculture prepare parts .Welcome to consult us.
